PRODUCTS

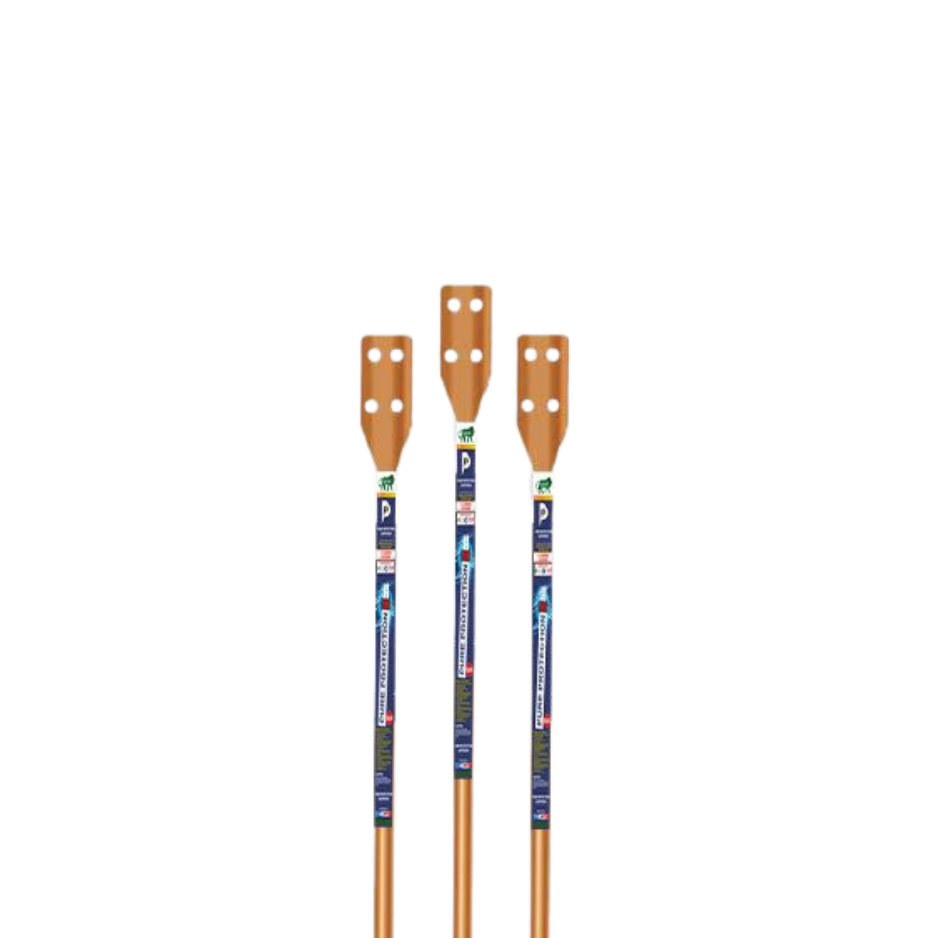

1-PPE COPPER TERMINAL EARTHING ELECTRODE
- Hot dip galvanized for corrosion protection
- Designed for fast fault current dissipation
- Low maintence on site
- Easy & fast installation on site
- Most suitable for soil condition with PH Valu 5.0 & 8.0
- Moisture booster chemical bags provided for low eath resistance
Pure Protection Earthing (PPE) consists of Primary Earthing Electrode (Outer Pipe) to the Full length from top to bottom & the process of hot dip galvanizations is well performed to a level of 80-100 Microns & a copper terminal followed by a copper strip Of 99.9% Pure Copper. The strip is inserted inside the outer GI Pipe & inner Copper Strip Is fully filled with a highly conductive & non- corrosive compound which safeguards the electrode getting corrode over a long period of time under the soil.
Also the compound ensures the easy distribution of leakage / fault current lands on the electrode. Both the ends of the electrode Are Permanently Sealed At Both The Ends With The Lead Copper Terminal At The With Two Holes On The Terminal For Connecting To The Load / Equipment.

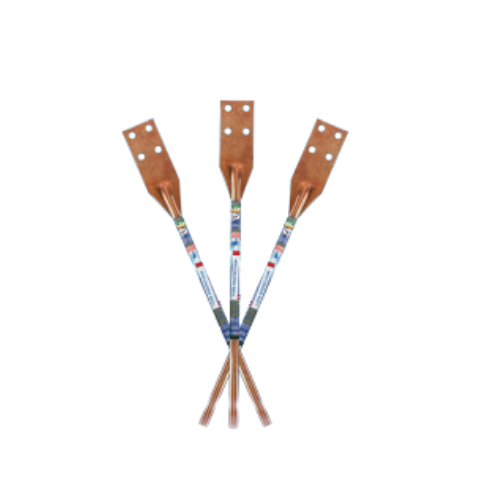

2-PURE COPPER EARTHING ELECTRODE
- Udas 100% copper for long life
- Designed for fast fault current dissipation
- Low maintence on site
- Easy & fast installation on site
- Most suitable for soil condition with PH Valu 5.0 & 8.0
- Moisture booster chemical bags provided for low eath resistance
Pure Protection Earthing (PPE) Pure copper Earthing Electrode is made of Electrolytic copper that is 99.9% pure. It is very resistant to corrosion. It is used when higher conductivity & corrosion resistance are required. It consists of a primary earthing electrode (outer pipe) of 99.9% pure copper pipe. The hollow space of the electrode is dully filled with a lightly conductive & non- corrosive compound which safeguards the secondary electrode getting corrode over a long period of time under the soil.

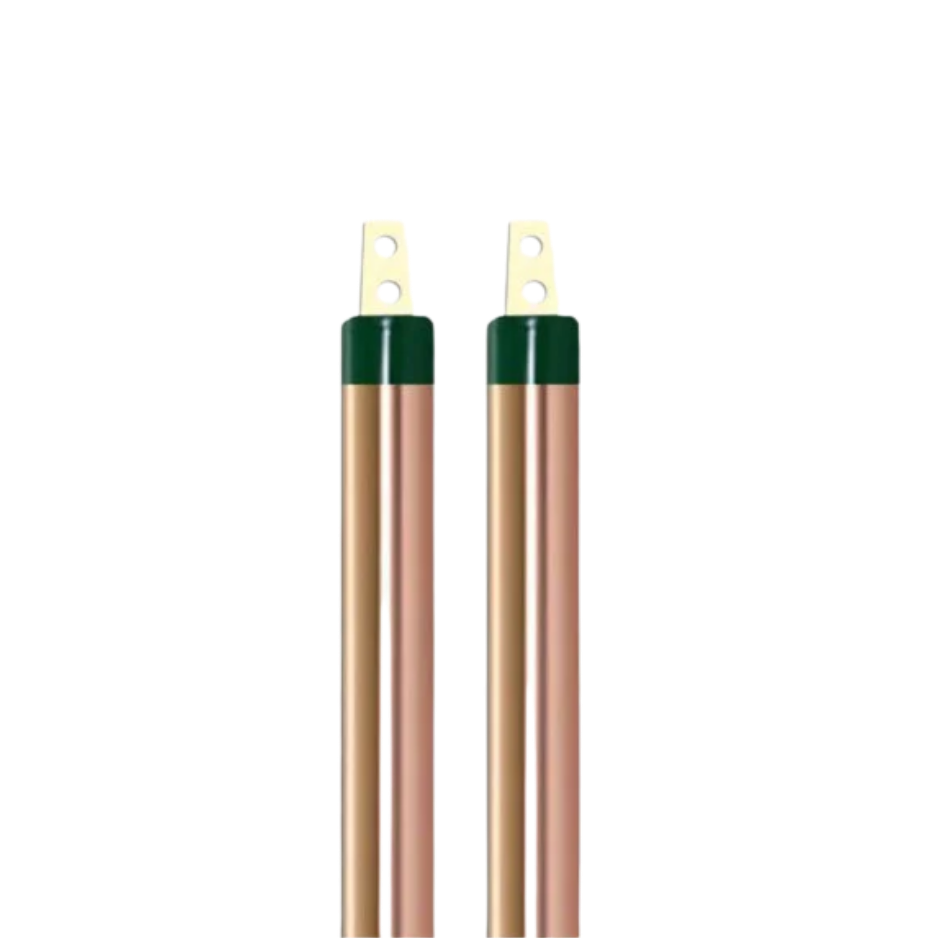

3-PPE COPPER BONDED EARTHING ELECTRODE
- Udas 100% copper for long life
- Designed for fast fault current dissipation
- Low maintence on site
- Easy & fast installation on site
- Most suitable for soil condition with PH Valu 5.0 & 8.0
- Moisture booster chemical bags provided for low eath resistance
Pure Protection Earthing (PPE) COPPER BONDED ELECTRODES are made by molecularly bonding pure electrolytic copper (99.9%) on a low carbon, high tensile steel pipe with exceeding 0.254mm (254 microns) thick.
Low carbon & high tensile steel pipe is selected to ensure a perfect and even bonding between the steel & copper. The thickness of the copper layer is of minimum 250 microns.

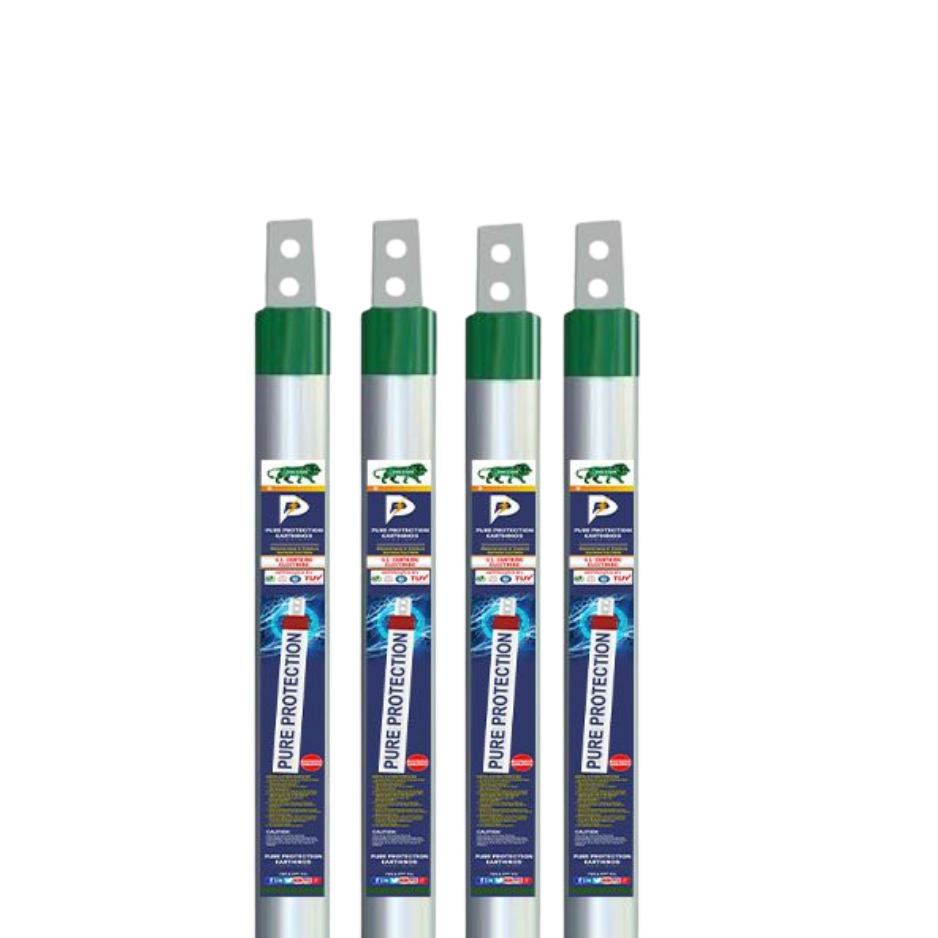

4-PPE GI EARTHING ELECTRODE (PIPE IN PIPE)
- Hot dip galvanized for corrosion protection
- Designed for fast fault current dissipation
- Low maintence on site
- Easy & fast installation on site
- Most suitable for soil condition with PH Valu 5.0 & 8.0
- Moisture booster chemical bags provided for low eath resistance
Pure Protection Earthing (PPE) consists of Primary Earthing Electrode (Outer Pipe) to the Full length from top to bottom & the process of hot dip galvanizations is well performed to a level of 80-100 Microns & a copper terminal followed by a copper strip Of 99.9% Pure Copper. The strip is inserted inside the outer GI Pipe & inner Copper Strip Is fully filled with a highly conductive & non- corrosive compound which safeguards the electrode getting corrode over a long period of time under the soil.
Also the compound ensures the easy distribution of leakage / fault current lands on the electrode. Both the ends of the electrode Are Permanently Sealed At Both The Ends With The Lead Copper Terminal At The With Two Holes On The Terminal For Connecting To The Load / Equipment.

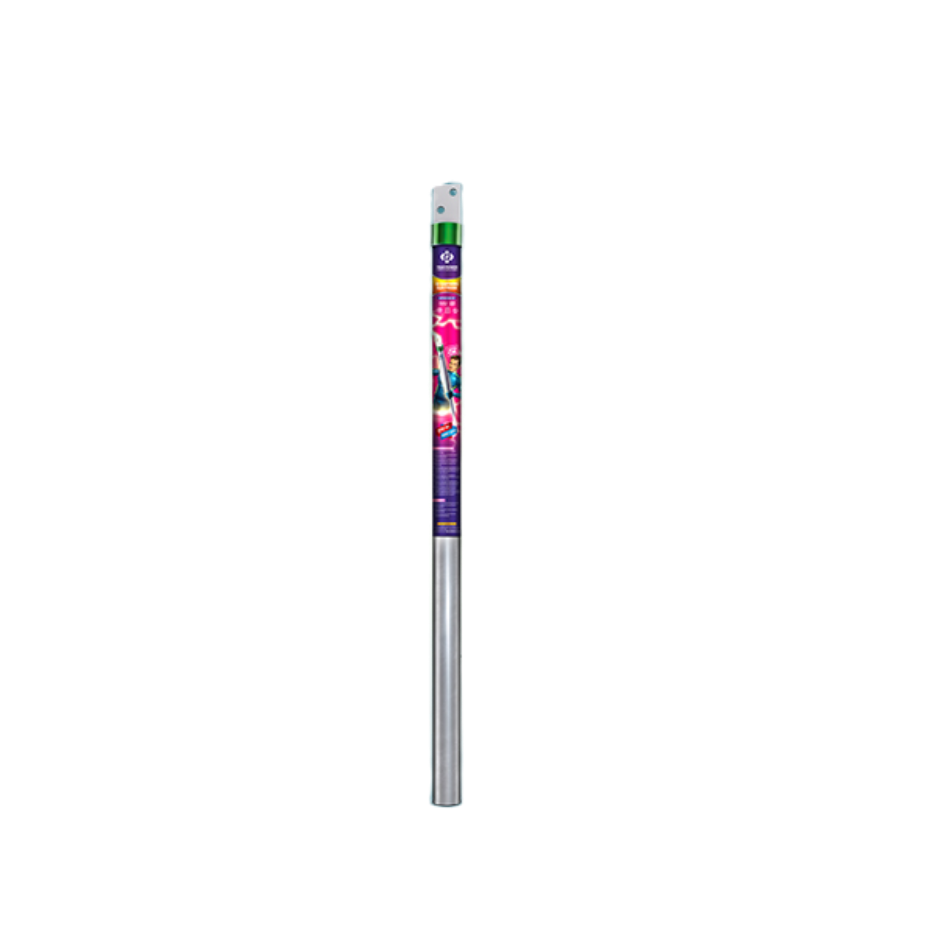

5-PPE GI EARTHING ELECTRODE (STRIPE IN PIPE)
- Hot dip galvanized for corrosion protection
- Designed for fast fault current dissipation
- Low maintence on site
- Easy & fast installation on site
- Most suitable for soil condition with PH Valu 5.0 & 8.0
- Moisture booster chemical bags provided for low eath resistance
Pure Protection Earthing (PPE) Consists of primary earthing electrode (outer pipe) and a secondary earthing electrode (INNER PIPE). The secondary earthing electrode is inserted inside the primary electrode and the process of hot dip galvanization is well performed. The space between the primary and the secondary electrode is duly filled with a highly conductive and non-corrosive compound which safeguards the electrode getting. Corrode over a long period of time under the soil.

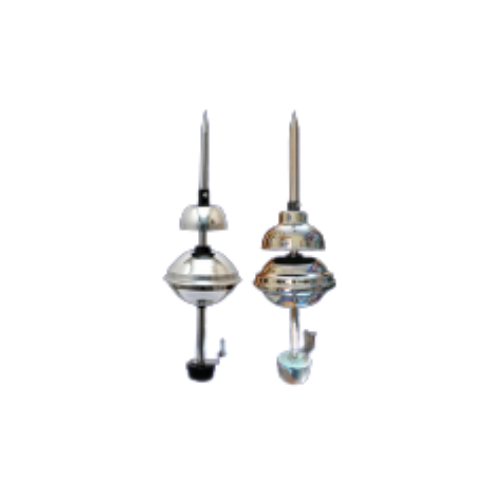

6-PPE ESE LIGHTNING ARRESTER
|
RP(M)
|
XTRA ADVANCR ESE T :30 △
|
XTRA ADVANCR ESE T : 60 △
|
|---|---|---|
- Complete Maintenance free.
- Does not require any external power supply.
- Create automatic electronic circuit of high voltages impulse emitter during all weather conditions.
- Single discharge tip for effective charge spread.
- Wholly Manufactures with stainless steel AISI-316.
- High quality anti corrosive & Conductive coating
Pure Protection Earthing (PPE) Consists of primary earthing electrode (outer pipe) and a secondary earthing electrode (INNER PIPE). The secondary earthing electrode is inserted inside the primary electrode and the process of hot dip galvanization is well performed. The space between the primary and the secondary electrode is duly filled with a highly conductive and non-corrosive compound which safeguards the electrode getting. Corrode over a long period of time under the soil.
7-PPE COPPER BONDED ROD
|
Models
|
ROD Diameter (mm)
|
Length
|
Copper Bonding
|
|---|---|---|---|
An Early Streamer Emission air terminal also known as ESE or as a lionizing Lightning rod is an External Lightning Protection System with innovative technology of active ion generators which work according to environment condition. The ESE terminal emits a continuous upward leader with time of advance to anticipate the descent of lightning and capture it before any other object within its protection area.
PPE Support Mast are made out of Quality Steel with Galvanization. These Mast are available in Different Sizes of 40mm/58mm dia and height of mast 2mtr, 3mtr,5mt,9mtr, Support Mast is Fixed with a insulating material on top this insulation prevents any under flow of current.

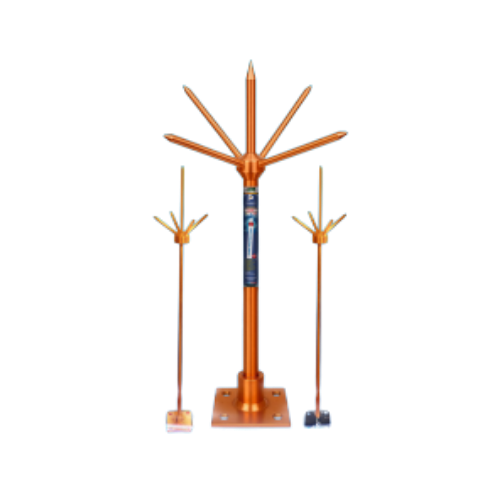

8 - PPE COPPER SPIKE / COPPER LIGHTNING ARRESTER
|
DIAMETER
|
LENGTH
|
|---|---|
- PPE involves in designing, Manufacturing & implementation of LPS (Lightning Protection System) in accordance to IS 2309 STANDARD. The products manufactured by PPE Earthing Electrodes compiles the international standards IEC 62305, UL 96A etc.
A Spike Lightning Protection Rod Is A Single Component in Spike Lightning Protection System. To Protect Home or Building in The Event of Lightning. A Metal Conductor Is Mounted on The Top of The Building and Electrically Connected to Earth Through A Wire Which Is Known as Conventional Lightning Rod or Spike Arrester.

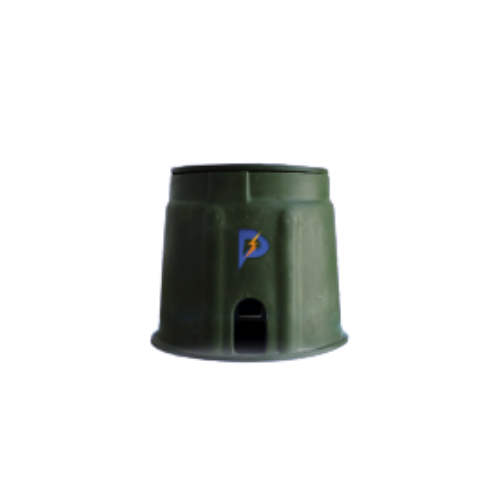

9 – PPE EARTHING PIT COVER (FRP & POLYPLASTIC)
|
SPECIFICATION
|
LENGTH
|
|---|---|
- Factory built holes for accessing strips / wires easily at two sides.
- Made of heavy-duty polyethylene for extra durability.
- Resistance materials, assuring long life use – life.
- Green top cap matches the environment.
FEATURE & BENEFITS
LIGHT WEIGHT CONSTRUCTION: The earth pit weight only one tenth in comparison with a massive 30 kg for a concrete pit.
HIGH LOAD-BEARING CAPACITY: Safe working load of 5.00 kg or more superior to that of the traditional concrete pit.
LOKBLE JAM FREE LID: Once installed the lid can be locked to prevent tempering with the earth electrode. Once locked the design of the lid is such that debris cannot become jammed between the lid and the surrounding.
UNBREAKABLE MATERIAL: The high-performance polymer is significantly less brittle than concrete, reducing the likelihood of wastage due to breakages.
STACKABLE DESIGN: Resistant to most substances. Including petrol, oil, diesel, bitumen and concrete.
UV STABILITY: UV additive minimizing the effects of direct sunlight.
WIDE TEMPERATURE APPLICATIONS: Capable of withstanding a wide range of temperatures.
IMPROVED WORKING AREA: A Larger working area, with improved access, simplifies both initial installation and subsequent inspection.
ROD PLECEMENT AREA: This ensure that the Earth Rod is centrally positioned, simplifying earth clamp connection.
SCREW RETENTION FACILTY: The stainless steel, rust proof screws maybe snapped into the lid, preventing loss whilst in storage or on site.
OPTIONAL EARTH BAR FACILITY: An earth bar may be inserted in the pit to allow for multiple connections to earth rod.
PPE EARTHING ELECTRODES has introduced an illustrious compound BFC grounding minerals which is used around the earth electrodes in order to reduce the resistance between soil & the electrodes. BFC grounding minerals is a combination of graphite, natural earth minerals, etc. which is of hygroscopic property to retain the moisture for a long time. BFC grounding minerals will from a low resistance zone surrounding the electrode and provide an easy path for the moisture up to twenty times of its dry volume as well as it create a gel layer surrounding the electrode.
The life of the earthing electrode surrounded by the BFC grounding minerals is considerably long compared to the conventional salt & charcoal based system. Since the content of the BFC grounding minerals are extracted from the natural minerals, It is PPE BFC is constantly hydrating and absorbs any naturally available moisture from the environment and ensure the stable resistance even in dry conditions. BFC grounding Is available in 25kgs bag.
